Copper vs. Fiber comparison

Copper cables have been the backbone of data transmission for decades, relying on electrical signals to transfer information. However, as data demands have increased, the limitations of copper have become apparent. One major drawback is attenuation, where the signal weakens over long distances, typically requiring repeaters to maintain signal integrity. In contrast, fiber optic cables can transmit data over distances of up to 80 kilometers or more without significant loss, thanks to their immunity to electromagnetic interference. This makes fiber optics not only faster but also more reliable for high-bandwidth applications.

Types of Optical Cable - Single-Mode vs. Multi-Mode

Fiber optic cables are primarily categorized into two types: single-mode and multi-mode. Single-mode fiber has a smaller core diameter (approximately 9 microns) and allows light to travel in a single pathway, making it ideal for long-distance communication, such as connections between buildings. It offers higher bandwidth and is typically used in outdoor environments. On the other hand, multi-mode fiber has a larger core diameter (ranging from 50 to 62.5 microns) and supports multiple light pathways, making it suitable for shorter distances, typically within a building. Multi-mode fiber is often more cost-effective but provides lower bandwidth compared to single-mode.

Fiber Grades and Wavelengths

Fiber optic cables are also classified by their grades and wavelengths, which determine their performance characteristics. For single-mode fibers, OS1 and OS2 are common grades, with OS1 being used indoors and OS2 for outdoor applications. Multi-mode fibers are categorized as OM1, OM2, OM3, OM4, and OM5, with each grade offering different bandwidth capabilities and distance support. For instance, OM3 can handle 40 Gbps at 240 meters, while OM4 can support 100 Gbps at a maximum distance of 150 meters. Understanding these grades is crucial for selecting the right fiber optic cable for specific networking needs.

Fiber Optic Connector types

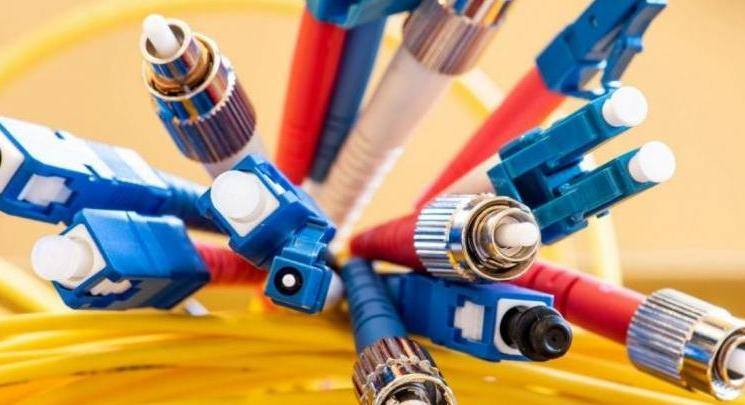

The effectiveness of fiber optic cables is also dependent on the connectors used to join them. The most common connector types include LC, SC, FC, and ST. The LC connector is widely used in modern networking due to its compact size and efficiency. SC connectors, while older, are still prevalent in many installations. FC connectors are known for their secure screw-on design, while ST connectors utilize a bayonet locking system. Additionally, MTP/MPO connectors are gaining popularity for high-density applications, allowing multiple fiber connections through a single connector. Understanding these connectors is essential for ensuring compatibility and optimal performance in fiber optic networks.

Applications

Fiber optic cables are utilized in a variety of applications, from telecommunications to data centers. For instance, a Cisco Nexus switch can support multiple 10 Gbps copper ports and 40 Gbps uplink ports, allowing for flexible networking solutions. Fiber optic connections are essential for linking switches, routers, and patch panels, ensuring high-speed data transfer across networks. The choice of fiber type and connector is critical in these setups, as mismatched components can lead to performance issues. Additionally, direct attached cables (DAC) offer a convenient solution for short-distance connections, integrating the transceiver module with the fiber cable.

Cable Installation

When installing fiber optic cables, several best practices should be followed to ensure optimal performance and longevity. First, it is crucial to avoid oversizing cables, as excess length can lead to messy installations and potential signal degradation. Conversely, cables should not be stretched, as this can cause damage to the fibers. Proper labeling of cables and connectors is also essential for easy identification and troubleshooting. Furthermore, using appropriate cable management solutions can help maintain organization and prevent physical damage to the cables.

Future Trends in Fiber Optic Technology

As technology continues to evolve, fiber optic technology is expected to advance further. Innovations such as wide-band multi-mode fiber (OM5) are being developed to meet the increasing demands of data centers and high-speed networks. Additionally, the integration of fiber optics with emerging technologies like 5G and IoT will likely drive further adoption and innovation in the field. Understanding these trends will be essential for network professionals looking to stay ahead in a rapidly changing landscape.
